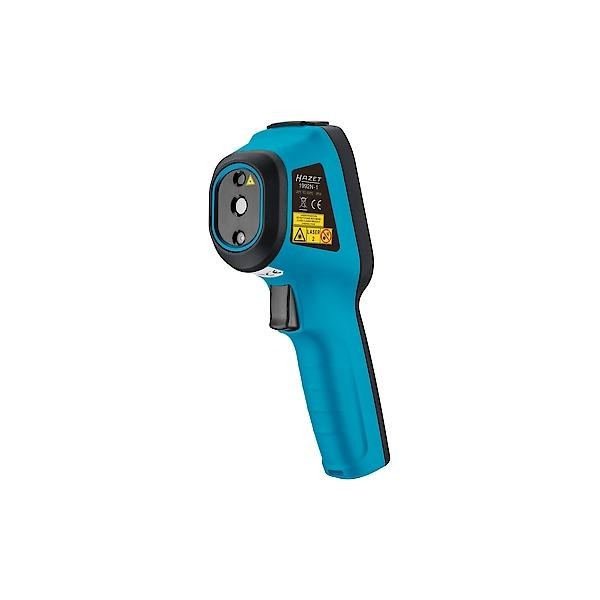

Thermal camera 320 x 240 pixel
Inhouse product
-
$11,745.00$14,500.00 -
$18,985.00
$20,750.00 -
$59,000.00
-
$45,120.00
$48,000.00
Reviews & Ratings

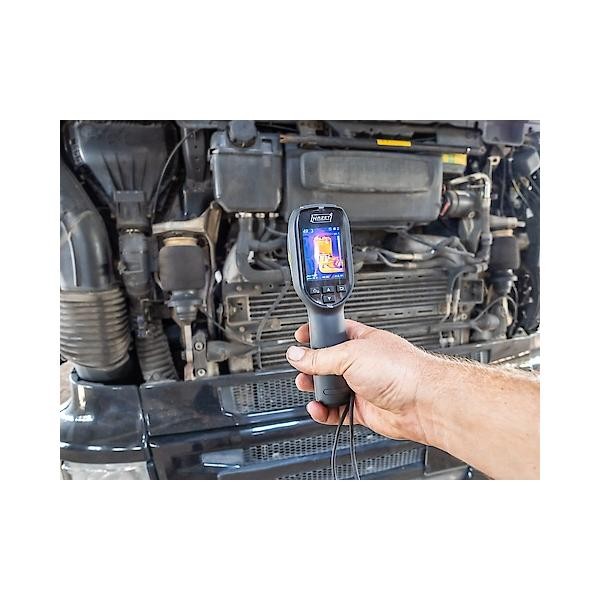

Application: - Building diagnostics electrical installation sanitary air-conditioning and heating technology and inspection of engine compartment brake system cooling and heating system.
Automatic hot, cold and central point measurement.
Focus IR (infrared) for improved resolution and quality.
Additional camera for better resolution of live video recordings (640 x 480 pixels).
Screen size: 2.4 inch LCD screen.
Display resolution: 320x240 pixels.
Thermal (or IR) resolution: 160x120 pixels.
Battery life: up to 8 hours.
6 colour palettes for optimum diagnostics: Black Hot White Hot Rainbow Ironbow Fusion Red.
Image sensor: Vanadium oxide uncooled focal plane arrays (FPA).
Refresh rate: 25 Hz.
Thermal sensitivity (Noise Equivalent Temperature Difference, NETD): < 40 mK (0.04° C).
Measuring accuracy maximum (±2° C ±2%): Ambient temperatures 15°C-35°C / Object temperatures above 0° C.
Field of view: 50°x50°.
Dimensions / length: 117 mm x 59 mm x 196 mm.
Net weight: 0.29 kg.
Temperature range: -20°C - 550°C.
- Field of view: 50° x 50°
